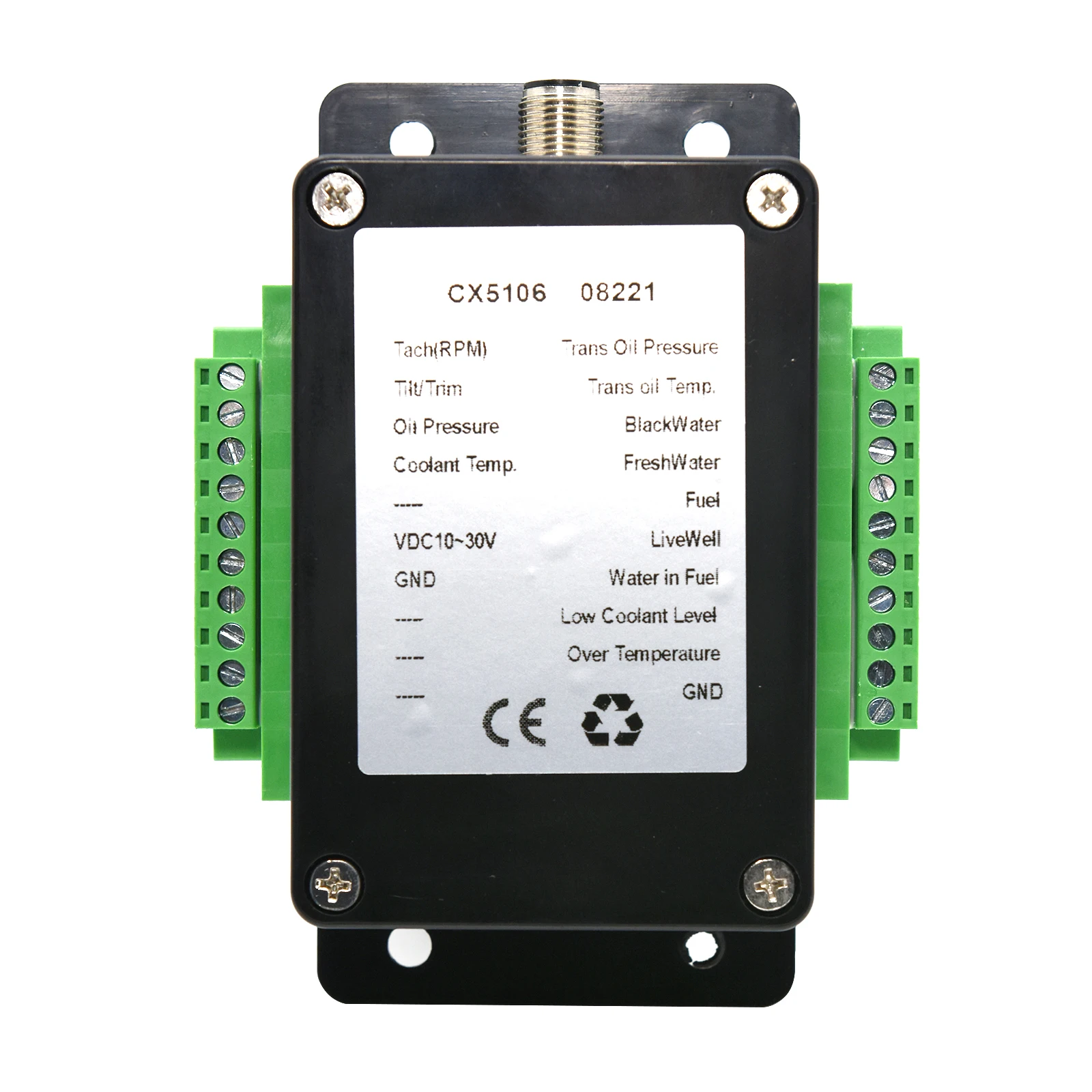

CX5106 NMEA 2000 Starter Kit Balck NMEA2000 Converter For Marine Boat Yacht Tank Gauge 0.5 Meter Line Accessories Tool
CX-5106
NMEA 2000 Converter Box Convertor Up to 13 sensors Signal to NMEA2000 interface For Boat Yacht Waterproof 9-32V DC Waterproor
Item Size: Boat NMEA2000 Converter
Model Name: NMEA2000 Converter
Feature:
1. Acquisition of sensor parameters and convert to NMEA2000 parameters
2. Up to 13 sensors can be collected
Sensor Parameter
Speed ratio adjustable range is 1~200
Engine tlt/trim 0~190ohm/240-33ohm
Oil pressure 10~184ohm(0~10bar)
Tepmerature 301~22ohm(40~120℃)
Rudder 0~190ohm/240-33ohm
Fuel level 0~190ohm/240-33ohm
Freshwater level 0~190ohm/240-33ohm
Wastewater level 0~190ohm/240-33ohm
Environmental
Operating Voltage: 9 to 32 Volts(DC)
Power Consumption: <120mA
Operating Temperature: -30~75degrees
Storage Temperature: -40~85degrees
Degree of Protection: IP67
Connection

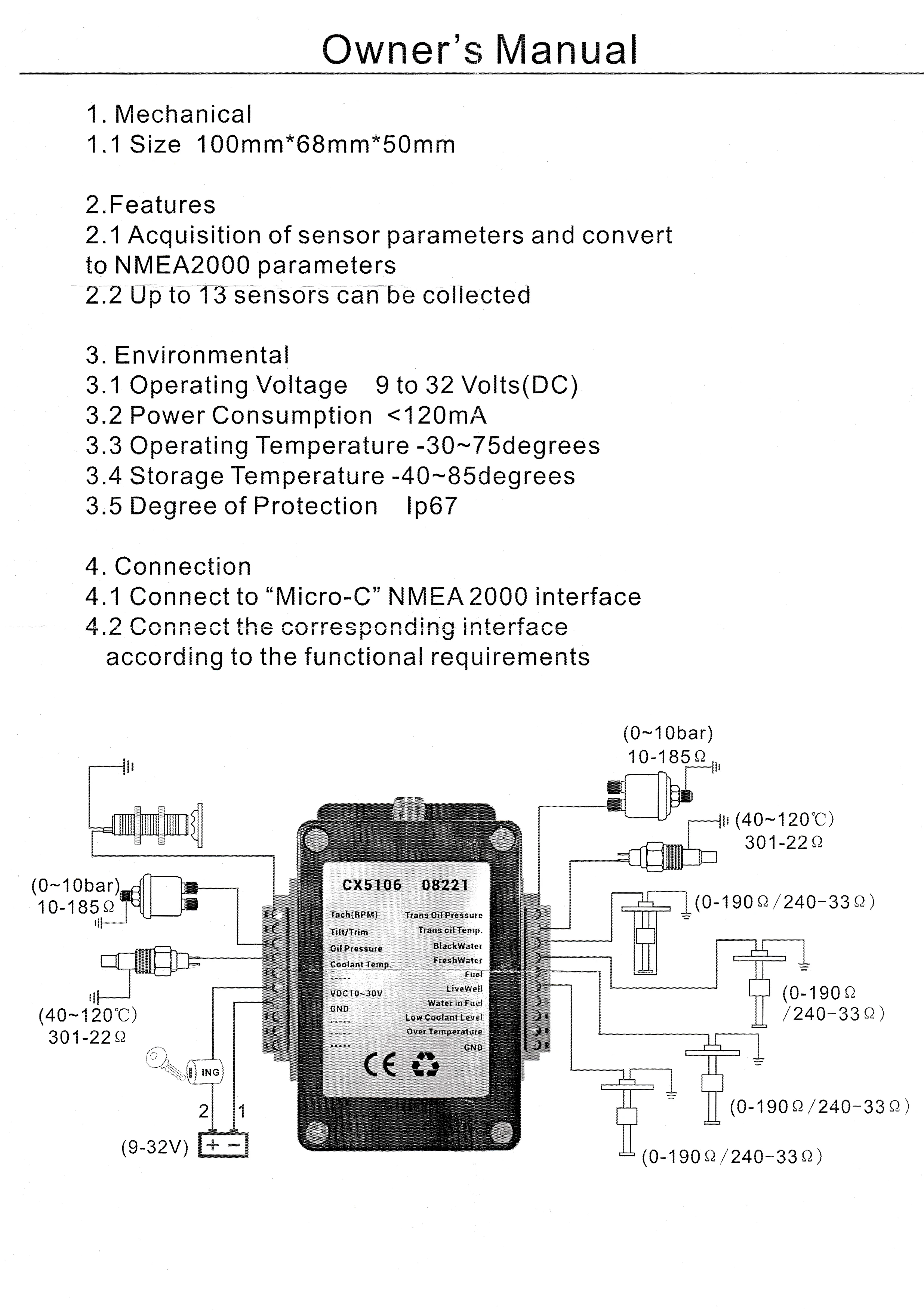

1. Connect to "Micro-C" NMEA2000 interface

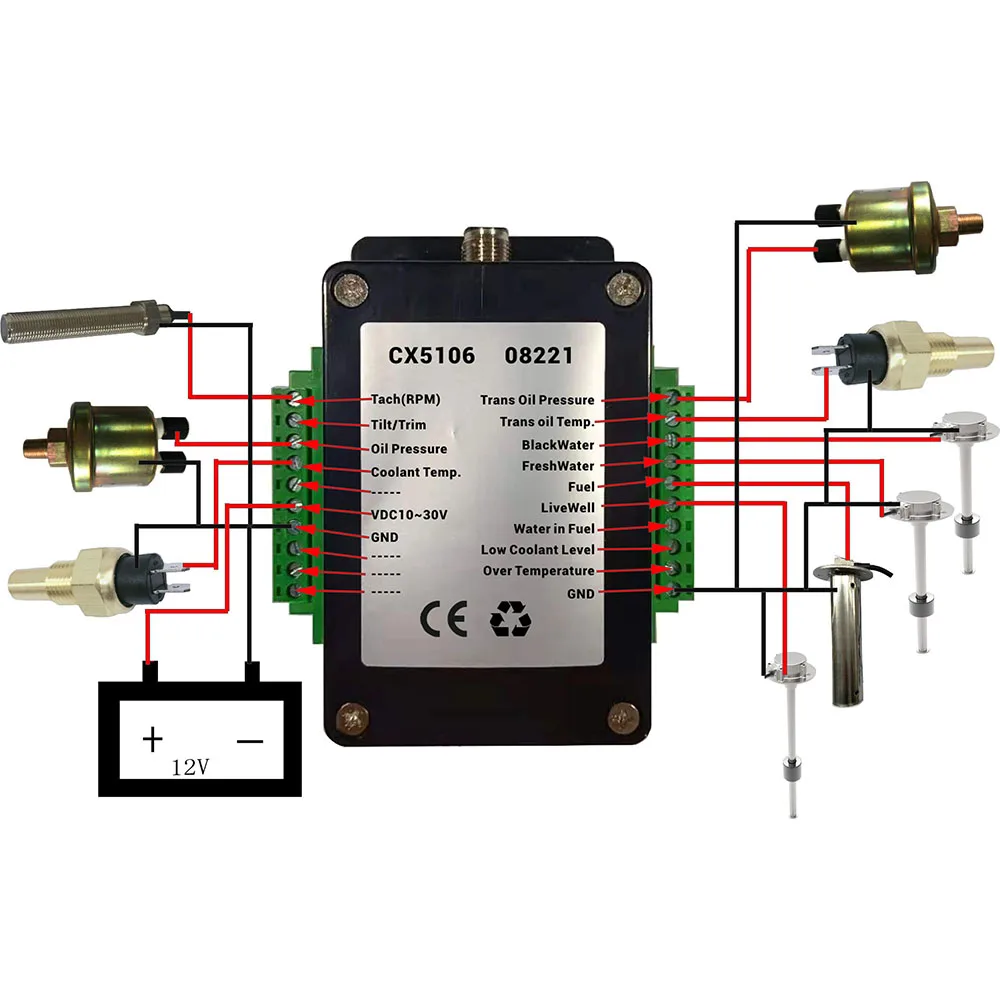

2. Connect the corresponding interface according to the functional requirements
Package:
AS picture show
Connection
- Connect to "Micro-C”NMEA 2000 interface
- Connect the corresponding interface according to the functional requirements
Environmental:
- Operating voltage 9 to 32 Volts(DC)
- Power Consumption <120mA
- Operating Temperature -30~75degrees
- Storage Temperature -40~85degrees
- Degree of Protection lp67
Feature :
- Acquisition of sensor parameters and convert to NMEA2000 parameters
- Up to 13 sensors can be collected
- Size 100mm*68mm*50mm
