The ONWA AIS receiver receives all AIS data of nearby targets around your boat (with suitable VHF Antenna) able to Interpret incoming AIS data for CPA alert or AIS S.A.R.T emergency messages

For KS-200B+_N:

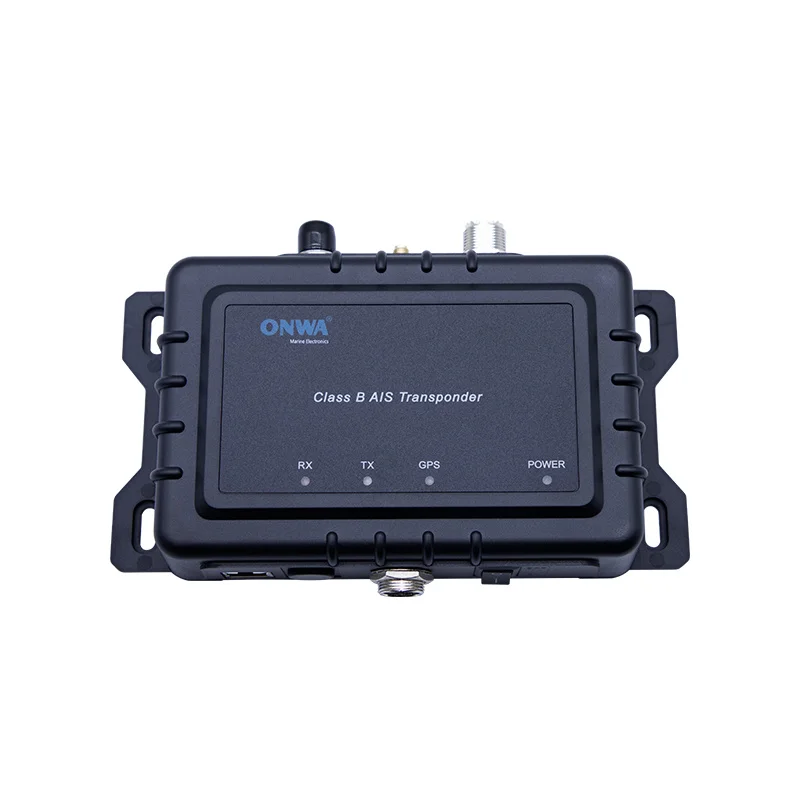

ONWA KS-200B+_N is an external AIS Device that may be interfaced with your Marine
Radar or GPS Chart Plotter capable to receive AIS data via RS232 port and Network
Data
KS-200B+_N lets you track your vessel even at certain distance using IP address of the black box unit which you can monitor from your computer

KS-200B+_Ncan only receive AIS but not transmit AIS

Physical
Dimension	200mm(length) x 138.7mm(width) x 45.8mm(height)
Weight	0.45kg
Power
Input	11 ~ 30VDC
Power consumption	0.20A nominal
Electrical Interface	RS232 38,400 baudrate bi-directional
Environment
IEC 60945(Cat C)
Operating Temperature	-25℃ to +60℃
WIFI
Mode	Hotspot (default) or WIFI terminal
User name	KS200xx_xxxxxxxx
Password	12345678 (default)
IP	192.168.4.1
For KS200B+ and KS200B+_N
Connectors
VHF Antenna connector PL259 female
NMEA 2000 Interface
VHF Transceiver
Frequency	161.975 MHz (AIS Channel 1: CH87B)
Frequency	162.025 MHz (AIS Channel 2: CH88B)
Receiver	x 2
Channel bandwidth	25KHz
Modulation modes	GMSK
Bit rate	9600 b/s GMSK
Rx Sensitivity	<-112dBm @20%PER
Compliant with the following standards
- IEC62287-2 (IEC standard, Class B shipborne equipment) - IEC60945 Edn 4.0 (IEC standard, environmental requirements) - ITU-RM.1371-4 (Universal AIS Technical Characteristics) - IEC61162-1 Edn. 2.0 (IEC standard, digital interfaces part 1) - IEC61108-1 (IEC standard, GPS receiver equipment) - IEC61993-2 (IEC standard, Marine navigation equipment)

Previous : ONWA KS-200A+ AIS Transponder Marine AIS 5 watts Class B+ AIS Transponder Support nmea2000 with wifi
