MASplitter2 698-3800MHz 2/3/4 Way Power Splitter Divider Wilkinson Micro Strip 50W 4.3-10 Female Connectors
Antenna 4.3-10 Female 698-3800MHz 2/3/4 Way Power Splitter 50W MINI DIN Low PIM -150dBc IP65 power divider 5G

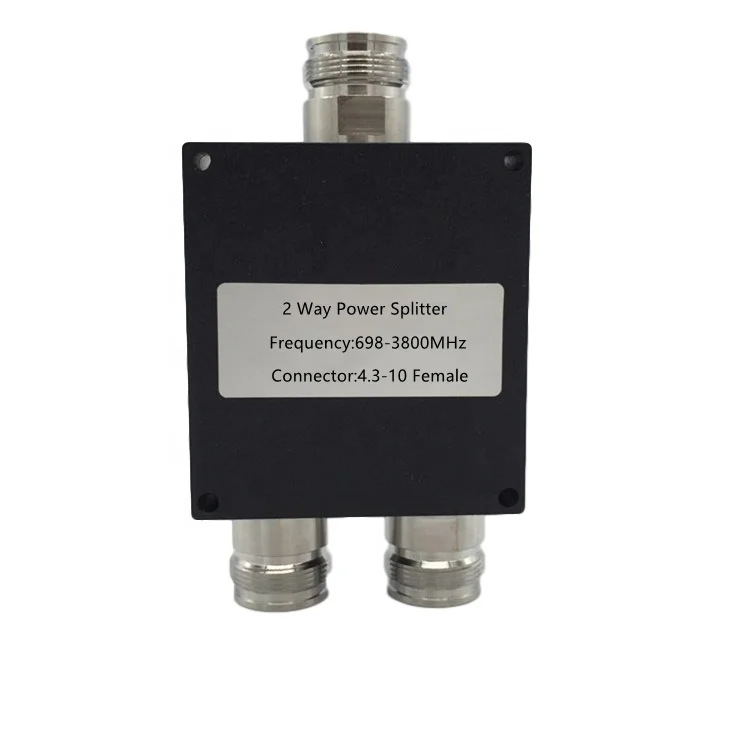

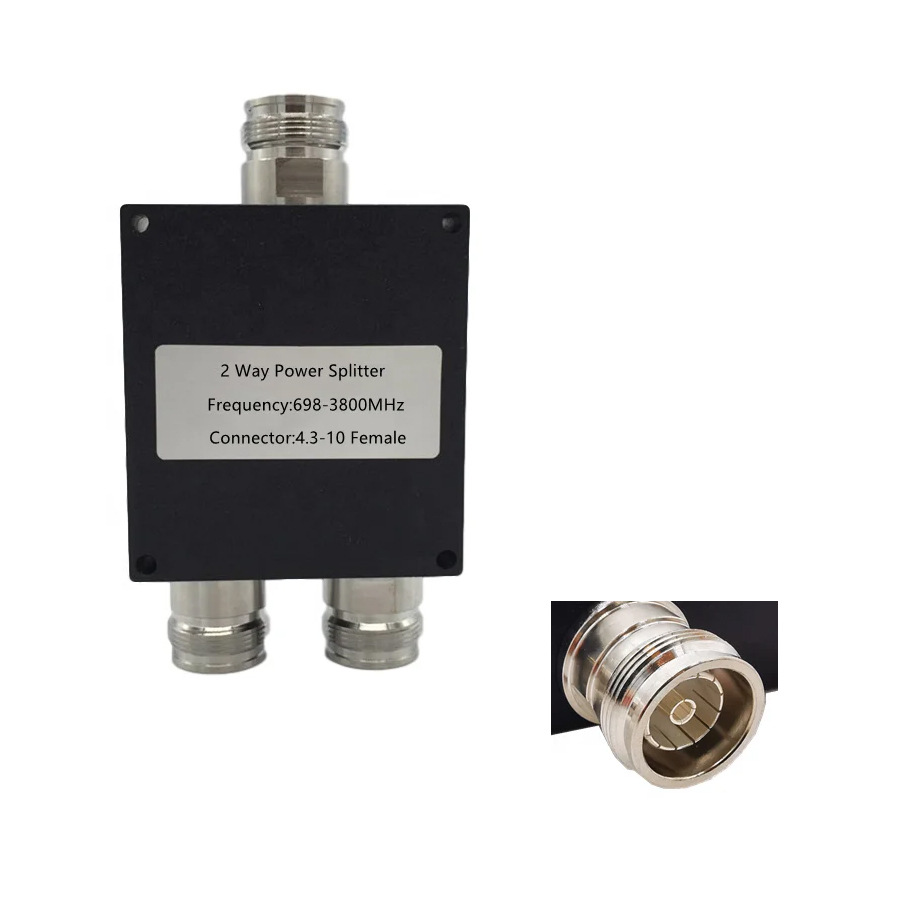

698-3800MHz 2/3/4 Way Power Splitter Divider Wilkinson Micro Strip 50W 4.3-10 Female Connectors
Power Splitters are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to bedistributed or combined.
We offer 2 Way 3 Way and 4 Way configurations fitted with N, 7/16 DIN Female or SMA Female connectors at all ports. Mainly used in repeater or base station to split, can also be used in indoor distribution system.
If you need 3/4 way splitter,please contact with us!
Specification below:
Frequency Range | 698-3800MHz |
Insertion Loss | 2 Way-3.8dB |
Isolation | ≥20dB |
VSWR | ≤1.30 |
Impedance | 50Ω |
Connector Type | 4.3-10-Female |
Average Power | 50W |
Application | Outdoor |
PIM3 | -150dBc@2*43dBm |
Net Weight-Kg | 0.4 |
Temperature | -35°C to +70° |
