Matsutec MCS-20_0183: Magnetic Compass Digital Converter Magnetic Compass Sensor 2-Axis magnetic compass

FEATURES: Magnetic Compass Digital Converter

• High accuracy

• Two electrical output, RS422/485 and RS232

• Standard NMEA sentences output, $HDT and $HDM

• High update rate, 10Hz

• LED Digital Heading Out

• Easy installation

• Wide operating voltage range from 6 to 32VDC


 Technical Specifications

Power

6~32 VDC

Accuracy

<1° (excluding magnetic anomalies)

Resolution

0.01 m/s

Output Rate

10 Hz

Interface

RS485/422/232

MCS-20  2-Axis magnetic compass

• Reliable sensor: Ensures consistent performance on water.

• Compact size: Space-saving solution for boat equipment.

• Matsutec MSC-20: High-precision magnetic compass for accurate navigation.

• Easy installation: Simple setup for boat parts and accessories.

• Durable design: Built to withstand harsh marine environments.


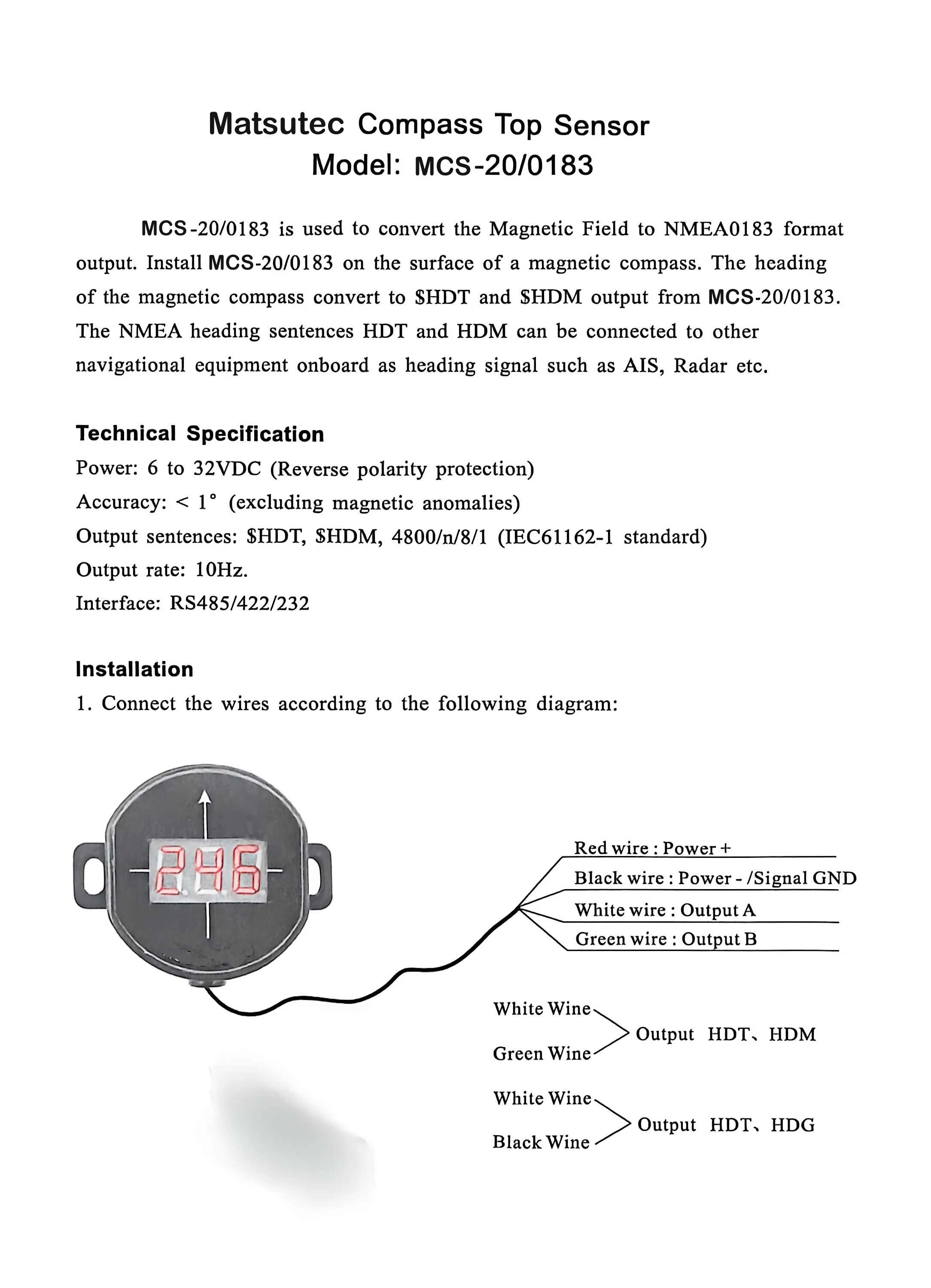

Compass Sensor with NMEA0183 Output With LED display .  Output Compass sentence.   The product used to conver the magnetic field to NMEA0183 format output , Install on the surface of a magnetic compass , the heading of the magnetic compass convert to $HDT and $HDM output from the MCS-20/0183 .  The NMEA heading sentences HDT and HDM can be connected to other navigational equipment onboard as heading signal such as AIS and Radar etc .  Power : DC 13.8V  Accuracy :  less than 1 degree .  Output sentence : $HDT, $HDM , , 4800/n/8/1  Output rate : 1/sec .  Interface : RS485 / 422 / 232

• Compass Sensor with NMEA0183 Output With LED display .
  Output Compass sentence.
  The product used to conver the magnetic field to NMEA0183 format output , Install on the surface of a magnetic compass , the heading of the magnetic compass convert to $HDT and $HDM output from the MCS-20/0183 .

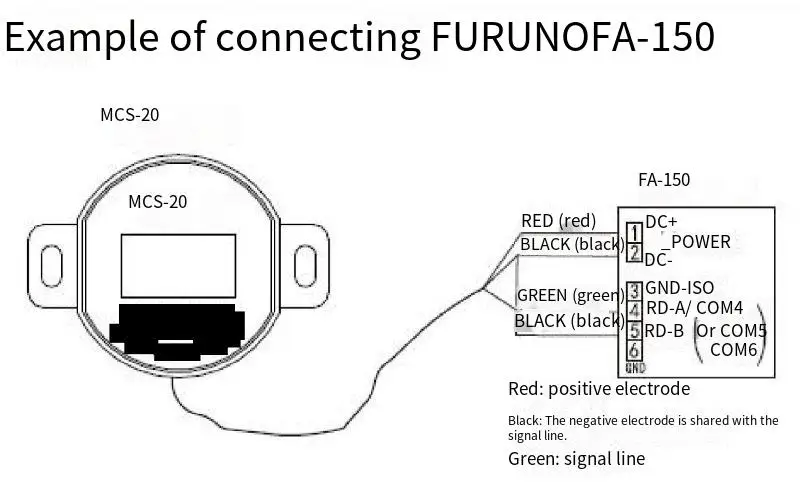

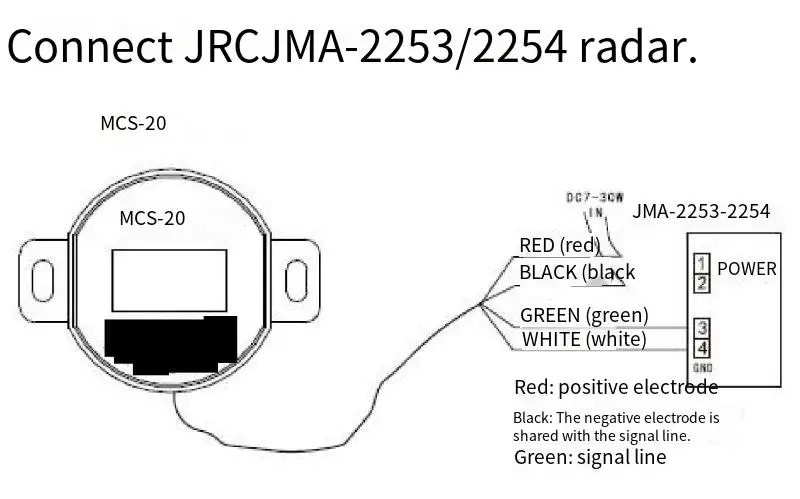

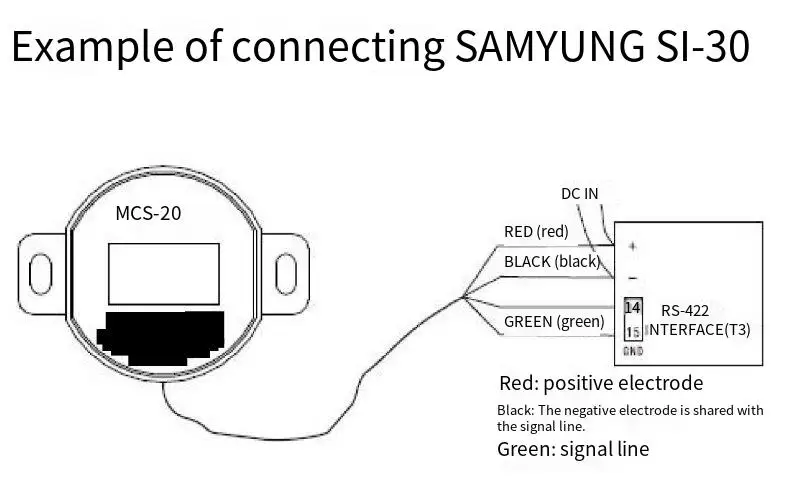

  The NMEA heading sentences HDT and HDM can be connected to other navigational equipment onboard
  as heading signal such as AIS and Radar etc .
  Power : DC 13.8V
  Accuracy :  less than 1 degree .
  Output sentence : $HDT, $HDM , , 4800/n/8/1
  Output rate : 1/sec .
  Interface : RS485 / 422 / 232


Feature highlights:Magnetic Compass Sensor with NMEA0183 output and LED display, converting magnetic field data to $HDT and $HDM sentences for seamless integration with navigational equipment like AIS and Radar. Features DC 13.8V power, less than 1-degree accuracy, and multiple interface options (RS485, 422, 232).

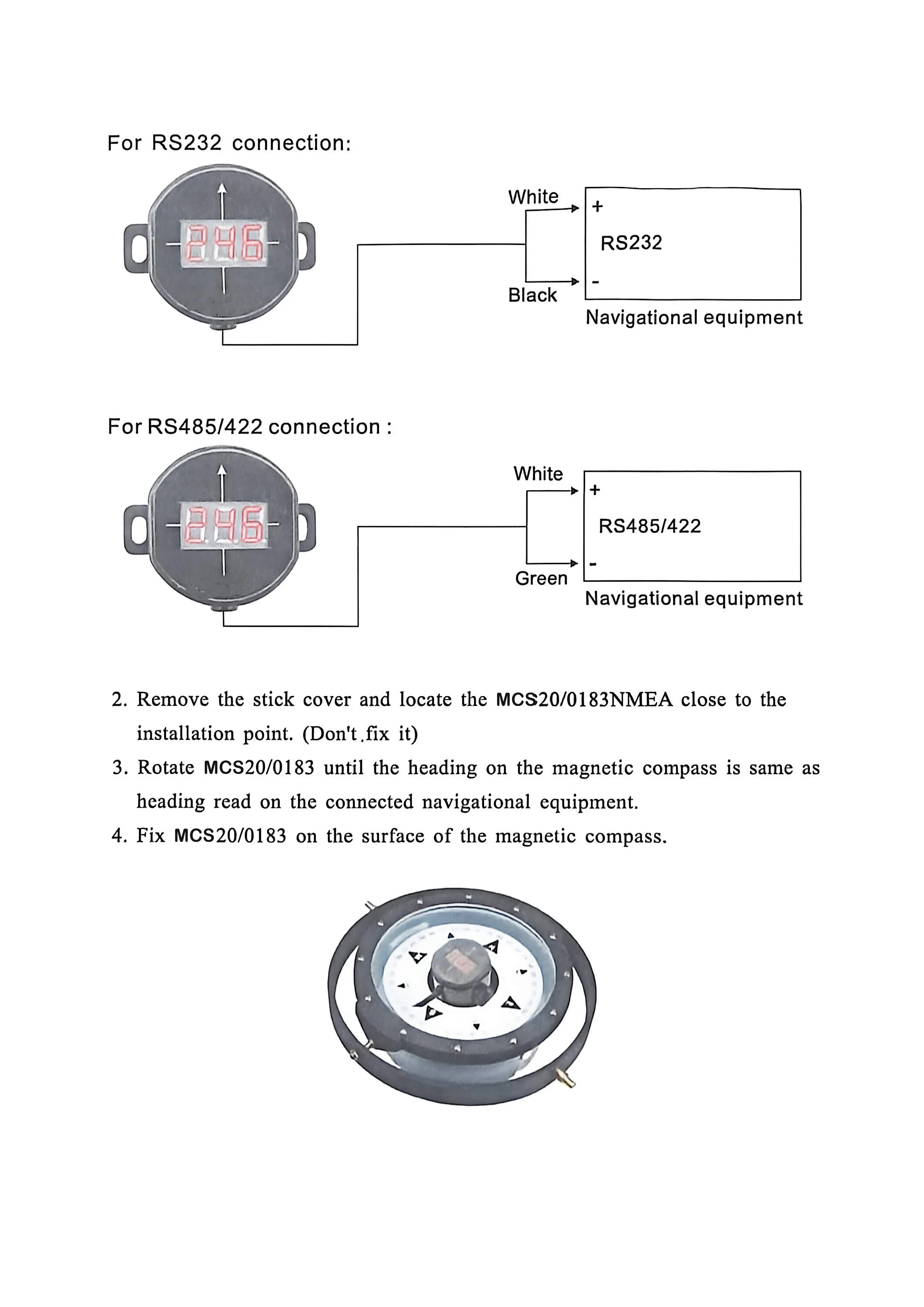

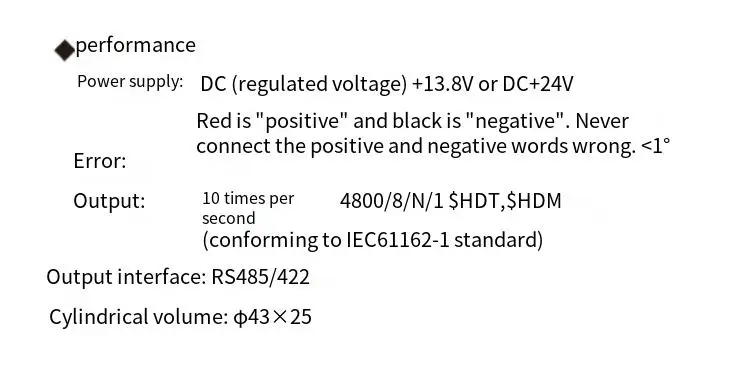

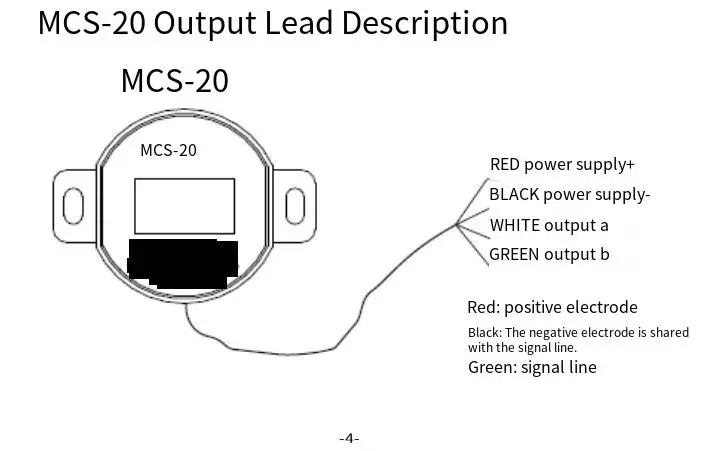

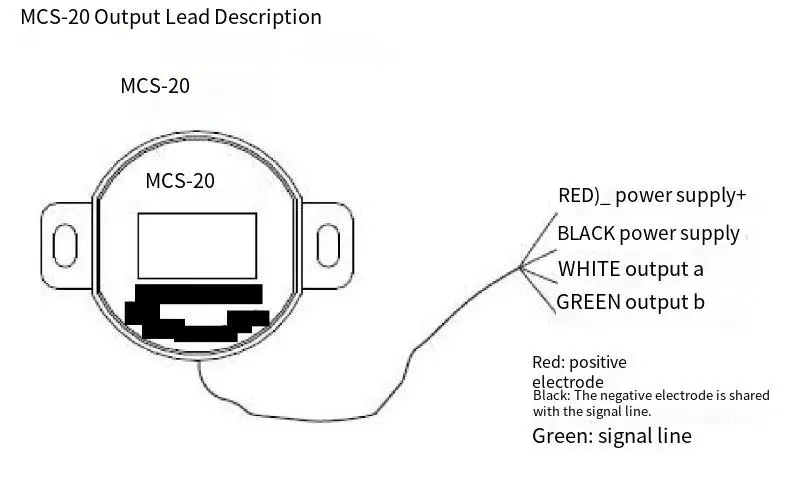

Parameter

Power Supply: DC24V/12V

Deviations: ＜1°

Output: 1time/second, 4800/8/N/1 HDT HDM (Comply with IEC61162-1 standard)

Interface: RS485/RS422/RS232

Diameters: 43×25MM

Protection grade: IP65

MSC-20 Magnetic Compass Sensor – Precision Navigation for Every JourneyWhen it comes to navigating the open waters, accuracy and reliability are not just important—they are essential. Whether you're a seasoned sailor, a weekend boater, or a marine enthusiast, having the right tools can make all the difference in your journey. The Matsutec MSC-20 Magnetic Compass Sensor is a high-performance device designed to provide precise heading information, ensuring you stay on course no matter where the sea takes you.Engineered with advanced magnetic sensing technology, the Matsutec MSC-20 is a compact yet powerful solution for integrating accurate compass data into your marine navigation system. It is ideal for a wide range of applications, from recreational boats to commercial vessels, and is a trusted component for those who rely on dependable navigation tools.What is the Matsutec MSC-20?The Matsutec MSC-20 is a digital magnetic compass sensor that delivers real-time heading information with high accuracy and stability. It uses a three-axis magnetometer to detect the Earth’s magnetic field and calculates the direction of the vessel relative to magnetic north. This data is then transmitted via a standard NMEA 0183 interface, making it compatible with most marine electronics systems, including GPS units, autopilots, and chartplotters.Unlike traditional mechanical compasses, the Matsutec MSC-20 is unaffected by vibration, tilt, or temperature changes, making it a more reliable and maintenance-free option for modern boating needs. Its digital design ensures consistent performance, even in challenging marine environments.Key Features of the Matsutec MSC-20- High Accuracy and Stability: The MSC-20 provides heading data with a high degree of precision, ensuring you can trust your navigation system even in rough seas.- Digital Output via NMEA 0183: The sensor is compatible with a wide range of marine electronics, allowing for seamless integration into your existing setup.- Compact and Durable Design: Built to withstand the harsh conditions of the marine environment, the MSC-20 is both compact and robust, making it easy to install and maintain.- Low Power Consumption: The sensor is designed to operate efficiently, minimizing power usage and extending the life of your onboard systems.- Easy Installation: With a straightforward mounting process and clear wiring instructions, the MSC-20 is a user-friendly solution for both DIY enthusiasts and professional installers.- Magnetic Field Compensation: The device includes advanced algorithms to compensate for local magnetic disturbances, ensuring accurate readings even in the presence of onboard metal structures or electrical equipment.Why Choose the Matsutec MSC-20?In the world of marine navigation, having a reliable compass is not just about knowing which way you're going—it's about safety, efficiency, and peace of mind. The Matsutec MSC-20 is designed to meet the demands of modern boating with a combination of advanced technology and user-friendly features.One of the standout benefits of the MSC-20 is its ability to provide consistent and accurate heading data, even in dynamic conditions. Traditional compasses can be affected by movement, tilt, and external magnetic fields, but the MSC-20 uses digital processing to filter out these disturbances and deliver reliable readings.Additionally, the sensor’s compatibility with NMEA 0183 means it can easily be integrated with other marine electronics, such as autopilots and GPS systems. This allows for a more cohesive and efficient navigation setup, where all components work together to provide a complete picture of your vessel’s position and direction.For boat owners who value performance and reliability, the Matsutec MSC-20 is an excellent investment. Whether you're navigating coastal waters, open oceans, or inland lakes, this sensor ensures you have the information you need to stay on course.Applications of the Matsutec MSC-20The Matsutec MSC-20 is a versatile device suitable for a wide range of marine applications. Some of the most common uses include:- Recreational Boating: From fishing boats to yachts, the MSC-20 provides accurate heading data to help recreational boaters navigate with confidence.- Commercial Vessels: For commercial operators, reliable navigation is crucial. The MSC-20 offers the precision and durability needed for long-haul and high-traffic operations.- Autopilot Systems: The sensor is often used in conjunction with autopilot systems to provide heading input, allowing for automatic course corrections and smoother sailing.- Marine GPS Integration: When paired with a GPS unit, the MSC-20 enhances the overall navigation experience by providing real-time heading information.- Marine Research and Surveying: In scientific and surveying applications, accurate heading data is essential for mapping and data collection. The MSC-20 is a trusted tool in these fields.Installation and SetupInstalling the Matsutec MSC-20 is a straightforward process that can be completed by most boat owners or marine technicians. The sensor is designed to be mounted in a location where it is not affected by onboard magnetic interference, such as near the engine or electrical systems. Once mounted, the sensor is connected to your marine electronics via the NMEA 0183 interface.Most modern marine systems are compatible with NMEA 0183, so the integration process is typically simple and quick. Once connected, the sensor begins transmitting heading data, which can be viewed on your GPS, autopilot, or chartplotter display.For those who are new to marine electronics, the MSC-20 comes with clear installation instructions and technical support to help ensure a smooth setup. Whether you're installing the sensor yourself or working with a professional, the process is designed to be user-friendly and efficient.Maintenance and LongevityOne of the advantages of the Matsutec MSC-20 is its low-maintenance design. Unlike traditional compasses that require regular calibration and adjustment, the MSC-20 is a digital sensor that requires minimal upkeep. However, it is still important to follow basic maintenance practices to ensure optimal performance.Regularly inspect the sensor for signs of wear or damage, and ensure that it is mounted securely to prevent movement or vibration. It is also a good idea to periodically check the wiring connections to ensure they are secure and free from corrosion.By following these simple maintenance steps, you can help extend the life of your Matsutec MSC-20 and ensure it continues to provide accurate heading data for years to come.Final ThoughtsIn the world of marine navigation, having a reliable and accurate compass is essential. The Matsutec MSC-20 Magnetic Compass Sensor is a high-performance solution that delivers the precision and reliability needed for a wide range of boating applications. With its advanced magnetic sensing technology, digital output, and easy integration, the MSC-20 is a valuable addition to any boat’s navigation system.Whether you're a casual boater or a professional mariner, the Matsutec MSC-20 offers the performance and durability you can trust. It’s a compact, efficient, and user-friendly device that ensures you stay on course, no matter where your journey takes you.Upgrade your marine navigation system today with the Matsutec MSC-20 and experience the difference that accurate heading data can make.
