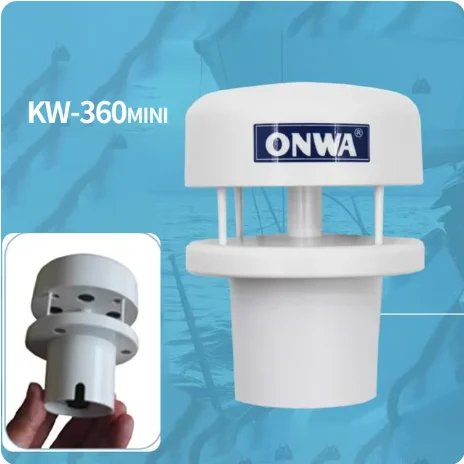

ONWA KW-360mini Ultrasonic Anemometer/ wind sensor Measures wind speed&direction, temperature, humidity, air pressure and altitude-副本

Graphic
Detail

ONWA KW-360mini Ultrasonic Anemometer/ wind sensor Measures wind speed&direction, temperature, humidity, air pressure and altitude-副本

ONWA marine Ultrasonic Wind Sensor

Product Detail

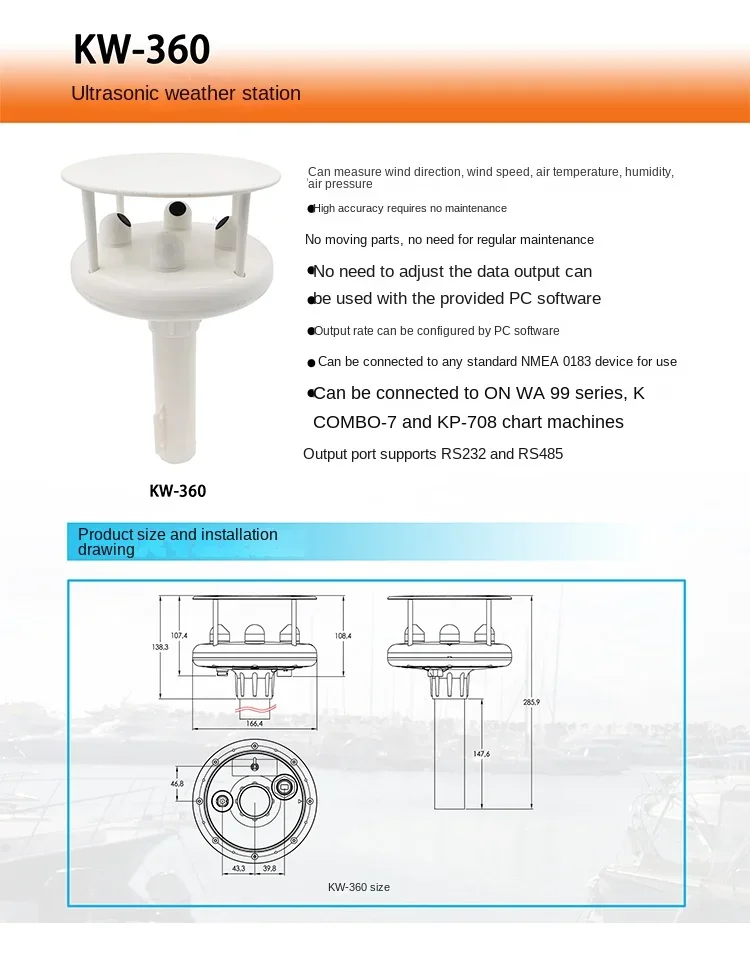

KW-360 ONWA Ultrasonic Anemometer nemometer Wind Sensor (Weather Station)

KW-360 is a powerful light-weight product that Measures wind speed&direction, temperature, humidity, air pressure and altitude.

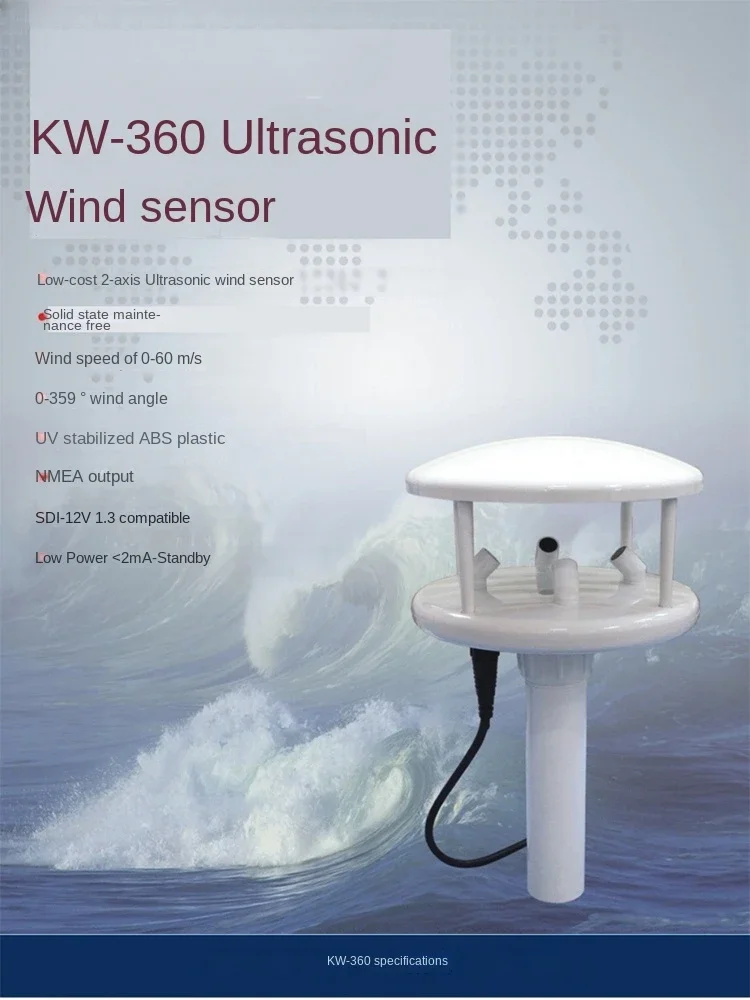

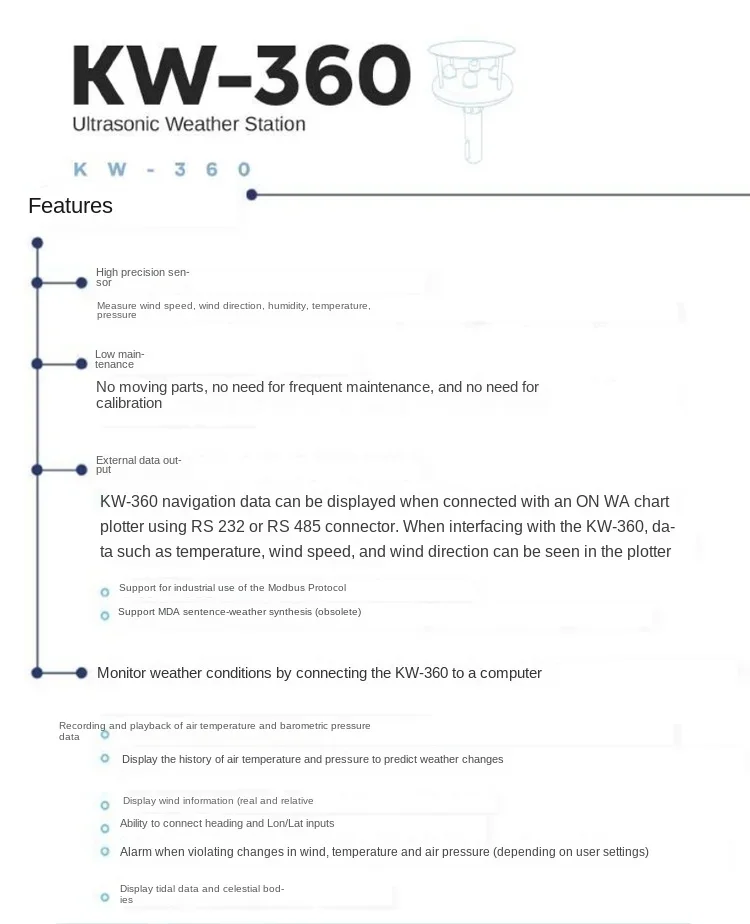

Features:

· Low-cost 2-axis ultrasonic wind sensor

· Solid-state - maintenance-free

· 0-359° wind direction

· UV STABILISED ABS plastic

· NMEA Output

· SDI-12 V1.3 Compatible

· Low Power <2mA - standby

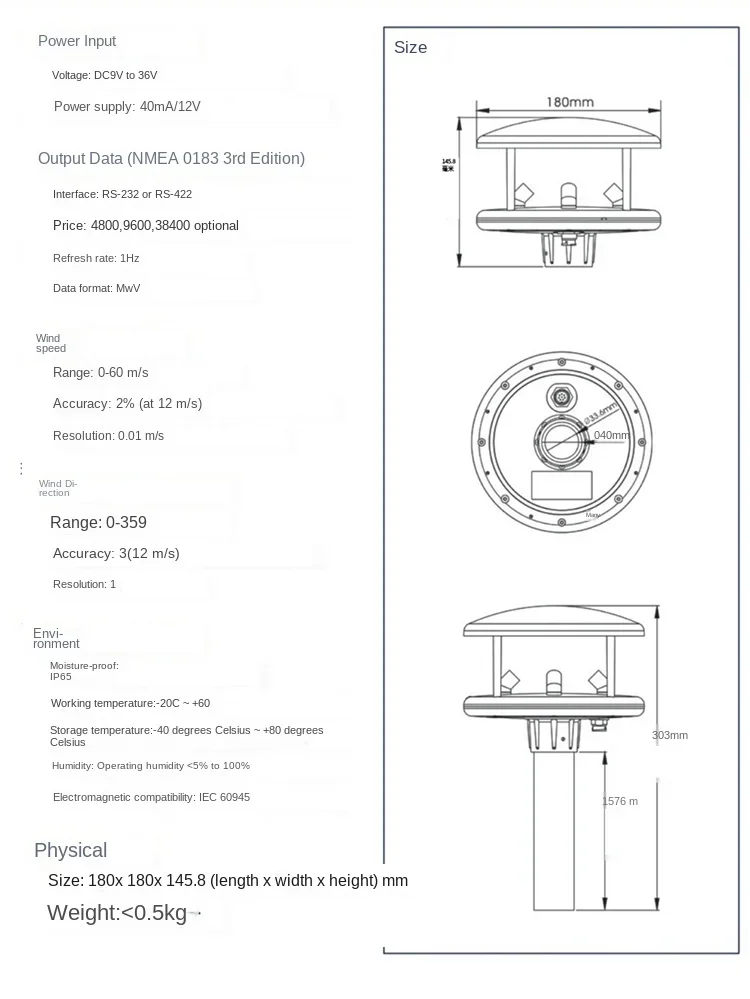

Specifications

WIND SPEED
Range	0~60m/s
Precision	±2% (at 12m/s)
Resolution	0.01 m/s
Measurement Unit	m/s
WIND DIRECTION
Range	0~359.9°
Accuracy	±3° (at 12m/s)
Resolution	0.1°
TEMPERATURE
Temperature Measurement Range	-20°C~+75°C
Temperature measurement Accuracy	±0.5°C (at 12m/s)
Temperature Resolution	0.1°C
Measurement Unit	°C
HUMIDITY
Humidity Measurement Range	10%~99.9%
Humidity measurement Accuracy	±2%RH (25°C)
Humidity Resolution	0.1%RH
OUTPUT DATA (NMEA 0183 version 3)
Hardware Interface	RS232 or RS422
Baud Rate	4800, 9600, 38400
Refresh rate	1 Hz
DATA Format	MWV
WORKING ENVIRONMENT
Waterproof Grade	IP65
Working Temperature	-20°C~ +75°C
Storage Temperature	-30°C~ +80°C
Working Humidity	<5%~100%
Electromagnetic Compatibility	IEC60945
Input Source	10.5 VDC ~ 40.5 VDC
MECHANICAL PROPERTIES
Size/Weight	180x180x145.8 (LxWxH)mm <0.5 kg
