DNV Type Approved SC90 Satellite Compass Marine Electronic Compass for Boat Use Essential Marine Supply
Gnss Compass Satellite Marine Gps Navigator SC-90 SC-120 SC-20 (GC-20 GC-90 GC-120) with CCS Certificate
IMO Type-approved as THD, GPS. Complying with the IEC, ISO requirements.
Product Usage
This product is a navigation instrument for measuring the heading of a ship. It provides shipowners with accurate heading and position information, speed heading information, and realizes ship motion state information display and early warning.
The satellite compass contains a CCS certificate and uses the principles of the Global Navigation Satellite System (GNSS) to provide highly accurate and precise heading data and positioning data for a variety of marine navigation equipment.
Product performance:
Front-loaded carrier phase decoding technology, more accurate orientation;
Multi-star system, with faster directional speed;
Advanced speed and course filtering technology to make the data more stable;
Built-in gyro compensation system has better heading performance; It has the characteristics of fast start, signal recapture, heading update up to 50 times per second, and turning rate up to 90°/s;
Multi-channel standard NMEA0183 output, providing high-stability, high-precision ship heading data and positioning data for Radar, ARPA, ECDIS, AIS, Chart Plotter, Autopilot, Sonar and other marine navigation equipment;
Excellent industrial product design, stylish appearance, easy installation;
Maintenance free and no recurring cost as there are no mechanical parts.
CCS type approval
DNV type approval
Technical parameters of the Satellite compass SC90
1. General
1.1 Receiving frequency | GPS/GALILEO/GLONASS/BEIDOU |
1.2 Heading accuracy | |
SC90 | 0.4°RMS |
SC120 | 0.2°RMS |
1.3 Heading resolution | 0.1°,0.01°(0.01° requires contact your dealer) |
1.4 Rate of Turn | 90°/s |
1.5 Position fixing time | less than 2min |
1.6 Attitude accuracy | Pitch/Roll: 0.3°RMS |
1.7 Power supply | DC11-32V |
2. Interface
2.1 Number of port | |
IEC61162(NMEA0183) | IEC61162-2: 2 port, IEC61162-1: 2 port |
AD-10 | 2 port, for heading output |
BAM/INS | 2 port |
2.2 Data port/Alert port | |
Input | ACN, HBT |
Output | ALC, ALF, ARC, HBT, HDT, RMC, ROT, THS, HCR GBS*, GGA*, GLL*, GNS*, GRS*, GSA*, GST*, GSV*, HDG*, VTG*, ZDA*, |
2.3 Output proprietary sentences | SHR* |
Note: output the sentence with * requires contact your dealer.
3.Environmental conditions
3.1 Ambient temperature | |
Antenna unit | -25 ℃ to 70 ℃ |
Junction box | -15 ℃ to +55 ℃ |
3.2 Relative humidity | 95% or less at +40 ℃ |
3.3 IP protection | |
Antenna unit | IP56(Exposed) |
Junction box | IP20(Protected) |
3.4 Vibration | IEC 60945 Ed.4 |
PACKING LIST FOR SC90
Satellite compass antenna with mounting bracket |
Junction Box |
Antenna cable |
8 Pin data line |
2-core power cord |
Fuse |
M4*20 Self-tapping Screws |
M12*40 Hexagon flat machine screw |
User manual |
TYPE EXAMINATION CERTIFICATE –EC MODULE B |
QS CERTIFICATE OF ASSESSMENT –EC MODULE D |
EC DECLARATION OF CONFORMITY |

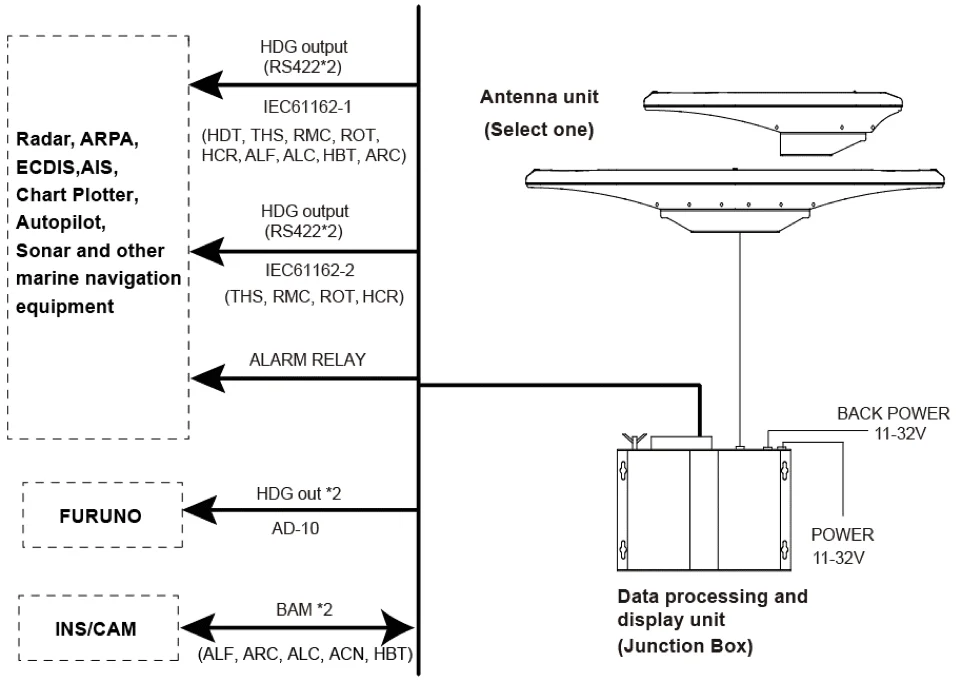

System configuration:
